Anritsu Capsule Checkweigher is applied for the exhaustive weighing test of highly active capsules, which is able to check 23 million capsules per hour in the industry’s highest weight accuracy of ±0.5 milligram. 3 rejection gates of the machine remove overweight、underweight and defective products and 1 gate remain accepted products. Moreover, the follow-up validation can be carried out.
Capsules No.000 to 5
（1）Best weighing solution for capsules containing active pharmaceutical ingredients Slight variances in active pharmaceutical ingredients can have a large impact on a drug's efficacy. Anritsu's force balance weighing technology provides the industry's highest weight accuracy of +/- 0.5mg, meeting even the most stringent standards for capsules containing high potency active pharmaceutical ingredients. | |

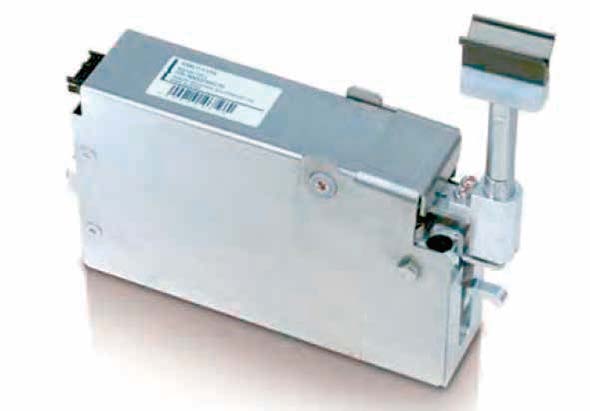

 | Force Balance Load Cell For over 50 years, Anritsu has proudly developed and manufactured load cells in-house. Our advanced force balance load cell achieves ultra-precise weighing all while maintaining a compact size well suited for pharmaceutical applications. |
（2）Stable and reliable feeding of semi-locked capsules - Achieved Our unique capsule handling technology eliminates empty capsules from bouncing and provides stable feeding throughout the inspection process. Minimizing product vibration is critical for high accuracy weighing. Accurately weighing empty capsules can also improve the reliablility of clinical trails and new drug testing. | |

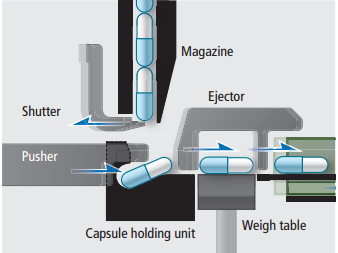

 | Capsules in the magazine are fed by the shutter individually. The capsule holding unit minimizes any vibration generated from the impact of the drop from the magazine. The capsule is then fed onto the weigh table. |
（3）Every capsule in the system is monitored and tracked Three rejection gates remove all defective products. | |
 | |

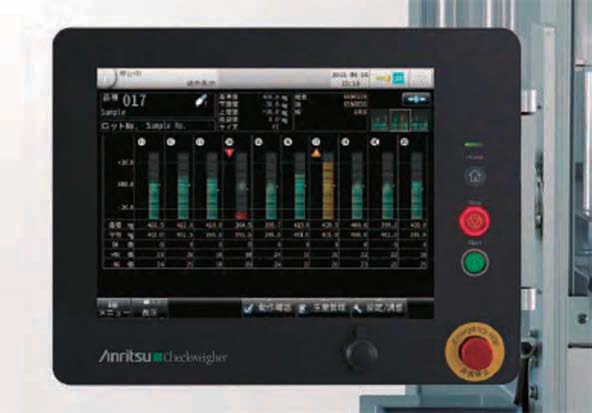

（4）High precision weighing - made easy
| |
 | |
